DESCRIPTION

Basic Info

Model NO.	PT1-304/100
Heat-Exchange Coil	High-Quality Copper Coil Diameter 12X1.0mm
Tank Exterior Shell	White Coated Color Steel/Stainless Steel
Transport Package	Inner Poly Bag With Outer Export Carton Packing
Specification	CE, ISO9001
Trademark	INLIGHT
Origin	China(Mainland)
HS Code	8419901000
Production Capacity	5000 Set/Month

Product Description

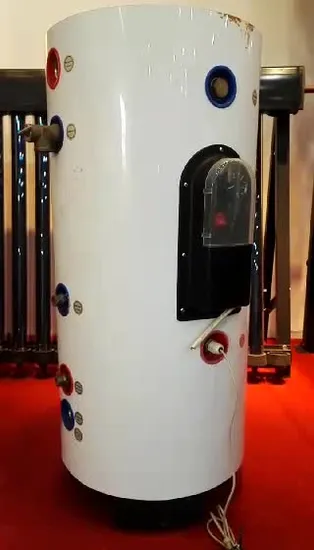

Water Tank
(1) Inner storage tank: Stainless SUS304-2B/ SUS316L 1.5-2.0mm (100-300L), 2.0-2.5mm (400-1000L)
together with advanced welding technics to ensure it with a long lifespan (15 years).

(2) Tank shell: High-quality white coated color steel plate 0.5-0.6mm,with its outer coating treatment ensures a long life even to ocean coast weather.

(3) Tank insulation: High-density polyurethane integrated foam-forming 50-100mm,preserves hot water constantly as long as 70~80 hours

(4) Accessories: Thermostat electrical heater with regulator, Anode magnesium, T/P valve, Relief valve

(5)Tank have two type: water tank without coil and water tank with single coil or double coil.
.
Optional Devices

Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continous hot water supply

Intelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent operation

Anode Magnesium: With the anode consumption to protect solar system from water scale and erosion

Warranty: 3 years international responsibility for integrated system and 15 years for glass vacuum tubes due to original quality problems

Product model	150L	200L	250L	300L	400L	500L	1000L
Inner bladder diameter(mm)	φ470	φ550	φ580	φ580	φ700	φ700	φ1000
Material and thickness of the inner bladder(mm)	Stainless steel SUS304 1.2mm	Stainless steel SUS304 1.2mm	Stainless steel SUS304 1.5mm	Stainless steel SUS304 1.5mm	Stainless steel SUS304 2.0m	Stainless steel SUS304 2.0mm	Stainless steel SUS304 2.0mm
Material and thickness of the shell(mm)	Colourful Steel	Colourful Steel	Colourful Steel	Colourful Steel	Colourful Steel	Colourful Steel	Colourful Steel
Insulation thickness(mm)	50mm	50mm	50mm	50mm	60mm	60mm	100mm
Overall dimension(mm)	φ470*1460	φ550*1360	φ580*1450	φ580*1700	φ700*1560	φ700*1890	φ1000*2100
